Deutsch DT Series Connectors

Deutsch’s DT Series connectors offer field proven reliability in corrosive and rugged environments.

Terminals

Select the terminal that fits your wire size. Use a plug in place of a terminal to fill an empty slot. Crimp terminals with HDT-48-00 crimping tool.

Pin

Socket

Plug

Pin



Socket

Wire Size (AWG) Feature Pkg. Qty. Pkg. Qty.
20-16 Standard 0460-202-16141 25 0462-201-16141 25
20-16 High Conductivity (Gold) 0460-202-1631 10 0462-201-1631 10
14 Standard (Green Band) 0460-215-16141 25 0462-209-16141 25
14 High Conductivity (Gold) 0460-215-1631 10 0462-209-1631 10
Plug for empty slot #114017 (25/pkg.)

Housings

Select the housing that has the number of circuits you need. Each housing requires a wedgelock to hold terminals in place. Use the quick splice to create a single circuit connection between a male and female terminal - no wedgelocks required.

Pin
Housing

Socket
Housing

Pin
Wedgelock

Socket
Wedgelock

Quick Splice

Pin



Socket

Pkg.      Pkg. Pkg.      Pkg.
Circuits Housing Qty.   Wedgelock Qty. Housing Qty.   Wedgelock Qty.
2-Way DT04-2P 10   W2P 10 DT06-2S 10   W2S 10
3-Way DT04-3P 5   W3P 10 DT06-3S 5   W3S 10
4-Way DT04-4P 5   W4P 10 DT06-4S 5   W4S 10
6-Way DT04-6P 1   W6P 10 DT06-6S 1   W6S 10
8-Way DT04-08PA 1   W8P 10 DT06-08SA 1   W8S 10
12-Way DT04-12PA 1   W12P 10 DT06-12SA 1   W12S 10
Quick Splice for DT Series Terminals #JS16-00 (1/pkg.)
Deutsch DT Series Kit

This kit contains all of the DT series housings, wedgelocks, and pin and socket terminals you need to create a connection - 20 items, over 190 pieces in a metal box. This kit is perfect for maintenance applications where you don't know which pieces you might need.



Part #

DEUTSCH KIT LG

Kit Contains Description Qty.
0460-202-16141 20-16 Gauge Pin Terminals 25
0462-201-16141 20-16 Gauge Socket Terminals 25
0460-215-16141 14 Gauge Pin Terminals 25
0462-209-16141 14 Gauge Socket Terminals 25
DT04-2P 2-Way Pin Housings 5
W2P 2-Way Pin Wedgelocks 5
DT06-2S 2-Way Socket Housings 5
W2S 2-Way Socket Wedgelocks 5
DT04-3P 3-Way Pin Housings 5
W3P 3-Way Pin Wedgelocks 5
DT06-3S 3-Way Socket Housings 5
W3S 3-Way Socket Wedgelocks 5
DT04-4P 4-Way Pin Housings 5
W4P 4-Way Pin Wedgelocks 5
DT06-4S 4-Way Socket Housings 5
(Cont.) Description Qty.
W4S 4-Way Socket Wedgelocks 5
DT04-6P 6-Way Pin Housings 1
W6P 6-Way Pin Wedgelocks 1
DT06-6S 6-Way Socket Housings 1
W6S 6-Way Socket Wedgelocks 1
DT04-08PA 8-Way Pin Housings 1
W8P 8-Way Pin Wedgelocks 1
DT06-08SA 8-Way Socket Housings 1
W8S 8-Way Socket Wedgelocks 1
DT04-12PA 12-Way Pin Housings 1
W12P 12-Way Pin Wedgelocks 1
DT06-12SA 12-Way Socket Housings 1
W12S 12-Way Socket Wedgelocks 1
0411-310-1605 18-16 Ga. Light Blue Removal Tool 1
114017 Plugs for DT and DTP Series 25
Small Deutsch DT Series Kit

Deutsch Kit contains 72 pieces, housings, wedgelocks, terminals, and 2 removal tools. Comes in a plastic box.



Part #

DEUTSCH KIT - SM

Kit Contains Description Qty.
0460-215-16141 14 Gauge Pin Terminals, DT Series 25
0462-209-16141 14 Gauge Socket Terminals, DT Series 25
DT04-2P 2-Way Pin Housings, DT Series 5
W2P 2-Way Pin Wedgelocks, DT Series 5
(Cont.) Description Qty.
DT06-2S 2-Way Socket Housings, DT Series 5
W2S 2-Way Socket Wedgelocks, DT Series 5
DT-RT Pick Removal Tool 1
0411-310-1605 18-16 Ga. Light Blue Removal Tool 1
Deutsch DTM Series Connectors

Deutsch’s DTM Series connectors are small by design and fit tight spaces. Designed for the same harsh, wet environments as the DT Series. For wire sizes 16 to 20 gauge wire.

Terminals

Select the terminal that fits your wire size. Use a plug in place of a terminal to fill an empty slot. Crimp terminals with HDT-48-00 crimping tool.

Pin

Socket

Plug

Pin



Socket

Wire Size (AWG) Feature Pkg. Qty. Pkg. Qty.
20 Standard 0460-202-20141 10 0462-201-20141 10
18-16 Standard 0460-010-20141 5 0462-005-20141 5
Plug for empty slot #0413-204-2005 (25/pkg.)

Housings

Select the housing that has the number of circuits you need. Each housing requires a wedgelock to hold terminals in place

Pin Housing

Socket Housing

Pin Wedgelock

Socket Wedgelock

Pin

Socket

Pkg.      Pkg.      Pkg.      Pkg.
Circuits Housing Qty.   Wedgelock Qty. Housing Qty.   Wedgelock Qty.
2-Way DTM04-2P 5   WM-2P 10 DTM06-2S 5   WM-2S 10
3-Way DTM04-3P 1   WM-3P 5 DTM06-3S 1   WM-3S 5
4-Way DTM04-4P 1   WM-4P 5 DTM06-4S 1   WM-4S 5
6-Way DTM04-6P 1   WM-6P 5 DTM06-6S 1   WM-6S 5
8-Way DTM04-08PA 1   WM-8P 5 DTM06-08SA 1   WM-8S 5
12-Way DTM04-12PA 1   WM-12P 5 DTM06-12SA 1   WM-12S 5
Deutsch DTM Series Kit

This kit contains all of the DTM series housings, wedgelocks, and pin and socket terminals you need to create a connection - 31 items, over 200 pieces in a metal box. This kit is perfect for maintenance applications where you don't know which pieces you might need.



Part #

DEUTSCH DTM KIT

Kit Contains Description Qty.
0460-202-20141 20 Ga. Pin Terminals, DTM Series 25
0462-201-20141 20 Ga. Socket Terminals, DTM Series 25
0460-010-20141 18-16 Ga. Pin Terminals, DTM Series 25
0462-005-20141 18-16 Ga. Socket Terminals, DTM Series 25
DTM04-2P 2-Way Pin Housings, DTM Series 5
WM-2P 2-Way Pin Wedgelocks, DTM Series 5
DTM06-2S 2-Way Socket Housings, DTM Series 5
WM-2S 2-Way Socket Wedgelocks, DTM Series 5
DTM04-3P 3-Way Pin Housings, DTM Series 5
WM-3P 3-Way Pin Wedgelocks, DTM Series 5
DTM06-3S 3-Way Socket Housings, DTM Series 5
WM-3S 3-Way Socket Wedgelocks, DTM Series 5
DTM04-4P 4-Way Pin Housings, DTM Series 5
WM-4P 4-Way Pin Wedgelocks, DTM Series 5
DTM06-4S 4-Way Socket Housings, DTM Series 5
WM-4S 4-Way Socket Wedgelocks, DTM Series 5
(Cont.) Description Qty.
DTM04-6P 6-Way Pin Housings, DTM Series 3
WM-6P 6-Way Pin Wedgelocks, DTM Series 3
DTM06-6S 6-Way Socket Housings, DTM Series 3
WM-6S 6-Way Socket Wedgelocks, DTM Series 3
DTM04-08PA 8-Way Pin Housings, DTM Series 3
WM-8P 8-Way Pin Wedgelocks, DTM Series 3
DTM06-08SA 8-Way Socket Housings, DTM Series 3
WM-8S 8-Way Socket Wedgelocks, DTM Series 3
DTM04-12PA 12-Way Pin Housings, DTM Series 3
WM-12P 12-Way Pin Wedgelocks, DTM Series 3
DTM06-12SA 12-Way Socket Housings, DTM Series 3
WM-12S 12-Way Socket Wedgelocks, DTM Series 3
0411-240-2005 Deutsch 24-20 Ga. Red Removal Tool 1
0411-310-1605 Deutsch 18-16 Ga. Lt Blue Removal Tool 1
0413-204-2005 Plugs for DTM Series 25
Deutsch DTP Series Connectors

Deutsch’s DTP Series connectors are the solution for your power application requirements. Building on the DT series design strengths, the DTP connector line was developed for higher amperage applications, up to 25 amps and 12 gauge wire.

Terminals

Crimp terminals with HDT-48-00 crimping tool.

Pin

Socket

Pin



Socket

Wire Size (AWG) Feature Pkg. Qty. Pkg. Qty.
14-12 Standard 0460-204-12141 10 0462-203-12141 10

Housings

Select the housing that has the number of circuits you need. Each housing requires a wedgelock to hold terminals in place.

Pin Housing

Socket Housing

Pin Wedgelock

Socket Wedgelock

Pin



Socket

Pkg.      Pkg. Pkg.      Pkg.
Circuits Housing Qty.   Wedgelock Qty. Housing Qty.   Wedgelock Qty.
2-Way DTP04-2P 1   WP-2P 10 DTP06-2S 1   WP-2S 10
4-Way DTP04-4P 1   WP-4P 10 DTP06-4S 1   WP-4S 10
Deutsch DTP Series Kit

This kit contains all of the DTP series housings, wedgelocks, and pin and socket terminals you need to create a connection - 13 items, over 100 pieces in a plastic box. This kit is perfect for maintenance applications where you don't know which pieces you might need.



Part #

DEUTSCH DTP - KIT

Kit Contains Description Qty.
0460-204-12141 14-12 Ga. Pin Terminals, DTP Series 25
0462-203-12141 14-12 Ga. Socket Terminals, DTP Series 25
DTP04-2P 2-Way Pin Housings, DTP Series 5
WP-2P 2-Way Pin Wedgelocks, DTP Series 5
DTP06-2S 2-Way Socket Housings, DTP Series 5
WP-2S 2-Way Socket Wedgelocks, DTP Series 5
DTP04-4P 4-Way Pin Housings, DTP Series 5
(Cont.) Description Qty.
WP-4P 4-Way Pin Wedgelocks, DTP Series 5
DTP06-4S 4-Way Socket Housings, DTP Series 5
WP-4S 4-Way Socket Wedgelocks, DTP Series 5
114010 Deutsch 12 Ga. Yellow Removal Tool 1
DT-RT Deutsch Pick Removal Tool #DT-RT1 1
114017 Plugs for DT and DTP Series 25
Solid Terminals for HD30, HDP20, HD10, DTHD, and DRB Series

Pin

Socket

HDT-04-08
Wire Size (AWG) Pin Socket Plug Removal Tool
10-8 0460-204-08141 0462-203-08141 114018 114008
6 0460-204-0490 0462-203-04141 114019 114009
Suggested Crimping Tool #HDT-04-08
Deutsch Tools

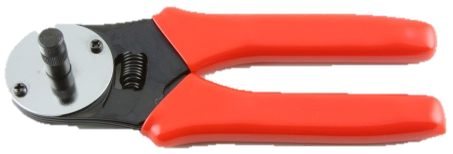

Crimp Tools for Deutsch DT, DTM, DTP Terminals

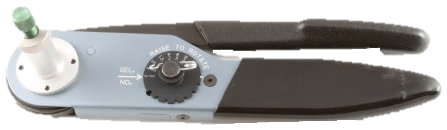

Production ratcheting tool
Part # HDT-48-00

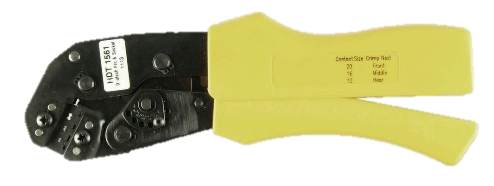

Field Service Ratchet Tool
Part # HDT-1561

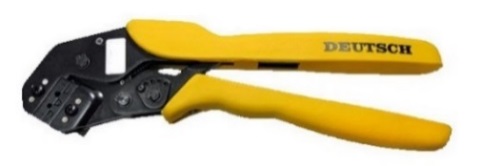

Economy ratcheting tool
Part # DT-TOOL-E

Crimps 20-12 gauge

• Use with the following Deutsch terminals:

0460-202-16141(Pin),
0462-201-16141(Socket)
0460-202-1631 (Pin),
0462-201-1631 (Socket)
0460-215-16141 (Pin),
0462-209-16141 (Socket)



0460-202-20141 (Pin),
0462-201-20141 (Socket)
0460-010-20141 (Pin),
0462-005-20141 (Socket)
0460-204-12141 (Pin),
0462-203-12141 (Socket)

Crimps 20-12 gauge

• Use with the following Deutsch terminals:

0460-202-16141 (Pin),
0462-201-16141(Socket)
0460-202-1631 (Pin),
0462-201-1631 (Socket)
0460-215-16141 (Pin),
0462-209-16141 (Socket)



0460-202-20141 (Pin),
0462-201-20141 (Socket)
0460-204-12141 (Pin),
0462-203-12141 (Socket)

Crimps 20-12 gauge

• Use with the following Deutsch terminals:

0460-202-16141(Pin),
0462-201-16141(Socket)
0460-202-1631 (Pin),
0462-201-1631 (Socket)
0460-215-16141 (Pin),
0462-209-16141 (Socket)



0460-202-20141 (Pin),
0462-201-20141 (Socket)
0460-010-20141 (Pin),
0462-005-20141 (Socket)
0460-204-12141 (Pin),
0462-203-12141 (Socket)

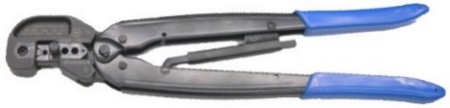

Part # DTT-12-00

Crimps 14-12 gauge.

• Use with Deutsch the following size 12 terminals:

1060-12-0166
(Pin)

1062-12-0166
(Socket)
Part # DTT-16-00

Crimps 16-14 gauge.

• Use with Deutsch the following size 16 terminals:

1060-16-0722    (Pin),    1062-16-0722    (Socket)
1060-16-0622    (Pin),    1062-16-0622    (Socket)
1060-16-0122    (Pin),    1060-16-0122    (Socket)
1060-14-0122    (Pin),    1060-14-0122    (Socket)
Part # DTT-12-01

Crimps 10 gauge.

• Use with Deutsch the following size 12 terminals:

1060-12-0222
(Pin)

1062-12-0222
(Socket)
Part # DTT-20-00

Crimps 10 gauge.

• Use with Deutsch the following size 20 terminals:

1060-20-0122
(Pin)
1062-20-0122
(Socket)
Part # DTT-16-01

Crimps 20-18 gauge.

• Use with Deutsch the following size 16 terminals:

1060-16-0122
(Pin)
1062-16-0122
(Socket)
1060-16-0622
(Pin)
1062-16-0622
(Socket)

Pick Removal Tools

Works with Description Part Number
Deutsch DT, DTM, DTP Series The tool has a double ended removal tool. One end has a sturdy DT-RT
90° hook for non-slip wedgelock removal. The other end has a
standard flat head screwdriver which can be used as a straight
pick or driver.

Terminal Removal Tools

Removal tools remove the Deutsch contacts from their housings. The plastic removal tools are economical. The metal removal tools are more durable.

(A) (B) (C) (D) (E) (F)
(G) (H) (I) (J) (K) (L)

Plastic



Metal

Wire Size (AWG) Works with Color Part Number Color Part Number
18-16 DT, DRC, HD, HDP, and HD10 Series Lt. Blue (A) 0411-310-1605 Lt. Blue (G) 0411-310-1605HD
24-20 DTM, DRC20, HDP, and HD30 Series Red (B) 0411-240-2005 Red (H) 0411-240-2005HD
12 DTP, DTCE, DTHD, HD10, HD30 Series Yellow (C) 114010 Yellow (I) 114010 HD
16-14 DRC, HD, HDP, and HD10 Series Green (D) 0411-291-1405 - - - - - - - -
10-8 DTHD, DTCE, HD, and HDP Series Green (E) 114008 Gray (J) 114008HD
6 DTHD, DTCE, HD, and HDP Series White (F) 114009 Green (K) 114009HD
Metal Removal Tool Set / Contains all three metal tools: 0411-310-1605HD, 0411-240-2005HD, 114010 HD. (L) REMOVAL KIT
