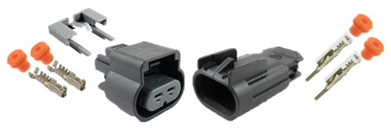

Metri-Pack GT-280 Series, Sealed

Male tab width = 2.8 mm. 25 amps max. per circuit.

For durable, long-term connections each housing uses a wire organizer (TPA) and mating pairs of housings use housing locks (CPA), unless noted. Terminals require seals and a proper crimping tool, listed below.

Terminals and Seals

Female

Male

Seal

Cavity Plug

Wire Size (AWG) Female Terminals Pkg. Qty. Male Terminals Pkg. Qty. Female & Male
Seal Part #
Color Pkg. Qty.
22-20 15304718 25 15304730 25 15366065 Orange 50
18-16 15304719 25 15304731 25 15366066 Yellow 50
14-12 15304717 25 15304732 25 15366067 Tan 50
10 15326004 25 ------- ----- 12191235 Purple 50
Cavity Plugs to Fill Unused Circuits, White (Pkg. of 25) Part #15305170

Housings

Female



Male


A
B
C
  J
K
L

D
E
F
  M
N
O

G
H
I
  P
Q
R
  Housing Lock
(CPA)

#15317832

No. of
Cavities
Female
Housings
Pkg.
Qty.
Male
Housings
Pkg.
Qty.
Housing Locks
(CPA)
Pkg.
Qty
2 (A) 13518845 10 (J) 15326678 10 15317832 10
3 (B) 15326614 10 (K) 15326623 10 15317832 10
4 (C) 13521459 10 (L) 15326633 10 15317832 10
5 (D) 13521463 1 (M) 15326647 5 15317832 10
6 (E) 13521467 5 (N) 15326640 5 15317832 10
8 (F) 15326654 1 (O) 15326655 1 15317832 10
10 (G) 15326660 1 (P) 15326661 1 15317832 10
12 (H) 15326910 1 (Q) 15326915 1 15317832 10
16 (I) 15326666 1 (R) 15326667 1 15317832 10
Metri-Pack GT-280 Series, Sealed Tools
  Works With Style Crimp Method Part Number
Metri-Pack 150, 280 and 630 Series, 22-10 Gauge
Metri-Pack 150GT and 280GT Series, 22-10 Gauge
Terminal Release Tool ------- 12094429
Metri-Pack 480, 630 and 800 Series, 20-10 Gauge
Packard 56, 58 and 59 Series, 20-10 Gauge
Terminal Release Tool ------- 12094430
Metri-Pack 150GT Series, Sealed, 22-16 Gauge
Metri-Pack 280GT Series, 22-16 Gauge

(Must remove locator on tool)

Ratchet Quick Single Motion 15359995
