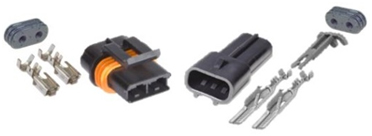

Metri-Pack 630 Series, Sealed, 2-Way Housings

Male tab width = 6.3 mm. 46 amps max. per circuit.

For durable, long-term connections each housing uses a wire organizer (TPA).

Female housing is pull-to-seat (Seal is inside). Male housing requires an entry seal.

Terminals require a proper crimping tool, listed below.

Terminals

Female

Male

Male

Wire Size (AWG) Pull-to-Seat Female Terminals Pkg. Qty.   Male Terminals Pkg. Qty.
20-18 12020156 10   12020125 10
16-14 12066614 10   12020126 10
12 12033997 10   12052826 10
12-10 ------- ----   12066493 10
Cavity Plugs to Fill Unused Circuits, Green (Pkg. of 25) Part #12059255

Housings

A
Female
B
Male
C
Male Housing
Entry Seal
D
"Male Wire
Organizers(TPA)
No. of
Cavities
Pull-to-Seat
Female Housings
Pkg.
Qty.
Male
Housings
Pkg.
Qty.
  Male Housings
Entry Seal
Pkg.
Qty.
Male Wire
Organizers(TPA)
Pkg.
Qty
2 (A) 12033769 5 (B) 12034269 5   (C) 12034364 5 (D) 12034363 5
Metri-Pack 630 Series, Sealed, 3-Way Housings

Male tab width = 6.3 mm. 46 amps max. per circuit.

For durable, long-term connections each housing uses a wire organizer (TPA) and mating pairs of housings use housing locks (CPA), unless noted. Terminals require seals and a proper crimping tool, listed below.

Terminals and Seals

Female

Male

Seal

Cavity Plug

Wire Size
(AWG)
Female
Terminals
Pkg.
Qty.
Male
Terminals
Pkg.
Qty.
  Female and Male
Terminal Seals
Color Pkg.
Qty.
20-18 12052457 10 12064734 10   ------- ------- -----
16-14 12052455 10 12064735 10   12052388 Dk. Red 25
12 12052456 10 12064737 10   15324996/12052668 Blue 25
10 12052456 10 12064736 10   12052386 Green 25
Cavity Plugs to Fill Unused Circuits, Green (Pkg. of 25) Part #12059255

Housings

A
Female
B
Male
C
Wire Organizer (TPA)
D
Housing Lock (CPA)


Female



Male


No. of
Cavities
Housings Pkg.
Qty.
Wire Organizers
(TPA)
Pkg.
Qty.
  Housings Pkg.
Qty.
Wire Organizers
(TPA)
Pkg.
Qty.
  Housing Locks
(CPA)
Pkg.
Qty.
3 (A) 12124685 5 (C) 12045699 10 (B) 12124686 5 (C) 12045699 10   (D) 12020833 5
  Works With Style Crimp Method Part Number
Metri-Pack 150, 280 and 630 Series, 22-10 Gauge
Metri-Pack 150GT and 280GT Series, 22-10 Gauge
Terminal Release Tool ------- 12094429
Metri-Pack 480, 630 and 800 Series, 20-10 Gauge
Packard 56, 58 and 59 Series, 20-10 Gauge
Terminal Release Tool ------- 12094430
Metri-Pack 480 Series, 12-10 Gauge (Crimps Sealed Only)
Metri-Pack 630 Series, 12-10 Gauge (Crimps Sealed Only)
Non-Ratchet Standard Two Crimp 12071687
Weather Pack Series, 12 Gauge
Metri-Pack 280 Series, Sealed, 12 Gauge
Metri-Pack 480 Series, Sealed, 18-14 Gauge
Metri-Pack 480 Series, Unsealed, 16-14 Gauge
Metri-Pack 480 Pull to Seat Series, Unsealed, 18-14 Gauge
Metri-Pack 150, 480 and 630 Series (Crimps Seals Only)
Metri-Pack 630 Series, Sealed 18-14 Gauge
Ratchet Standard Two Crimp 12085270
