Crimping Tools

Select a crimping tool that crimps the proper type and wire size for the connector you're using. Ratchet style crimpers make the crimping process easier to complete.

Crimping Tools for Insulated Terminals
Wire Size (AWG) Style Feature Part Number

26-14



22-10



16-8

Ratchet Tool



Ratchet Tool



Ratchet Tool

Release Lever

Also Crimps 26-14 Gauge Heat Shrink Terminals


Release Lever

Also Crimps 22-10 Gauge Heat Shrink Terminals


Release Lever

Also Crimps 16-8 Gauge Heat Shrink Terminals

500 RATCHET UL-S



500 RATCHET UL



500 RATCHET UL-L

22-10 Ratchet Tool Pressure Adjustment Wheel, Release Lever 500 RATCHET-ERG
22-10 Ratchet Tool Pressure Adjustment Wheel, Release Lever 500 RATCHET
26-14 Ratchet Tool Pressure Adjustment Wheel, Release Lever 500RATCHET26-14
26-10 Crimper Tool

Heavy Duty Multi-Purpose Tool

Also Crimps 26-6 Gauge Non-Insulated Terminals

Also Crimps 22-10 Gauge Non-Insulated Flag Term.

Also Crimps 26-10 Gauge Closed End Connector Term.

Strips 20-8 Gauge Wire

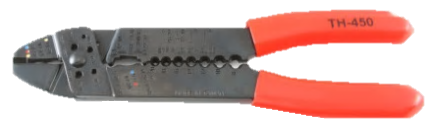

TH-450
26-10 Crimper Tool

Economy Multi-Purpose Tool

Also Crimps 22-10 Gauge Non-Insulated Terminals

Strips 26-8 Gauge Wire

MPT
22-10 Crimper Tool Also Crimps 22-10 Gauge Non-Insulated Terminals 429
8-2 Crimper Tool

18.5" Long

Also Crimps 8-2 Gauge Non-Insulated Terminals

6220
20-10 Ratchet Tool

Three Quick Change Dies, Release Lever

Also Crimps 26-8 Gauge Non-Insulated Terminals

Also Crimps 20-10 Gauge "B" Crimp (Wing Type) Term.

RATCHET TRIO
Crimping Tools for Non-Insulated Terminals
Wire Size (AWG) Style Feature Part Number
20-8 Ratchet Tool Pressure Adjustment Wheel, Release Lever 501 RATCHET
16-6 Ratchet Tool

11" Long Spring Loaded Handles, Release Lever

Four Die Nests: 16-14 ga., 12-10 ga., 8 ga., 6 ga.

RT-6
22-10 Crimper Tool Also Crimps 22-10 Gauge Insulated Terminals 429
26-6 Crimper Tool

Heavy Duty Multi-Purpose Tool

Also Crimps 26-6 Gauge Insulated Terminals

Also Crimps 26-10 Gauge Closed End Connector Term.

Also Crimps 22-10 Gauge Non-Insulated Flag Term.

Strips 20-8 Gauge Wire

TH-450
22-10 Crimper Tool

Economy Multi-Purpose Tool

Also Crimps 26-8 Gauge Insulated Terminals

Strips 26-8 Gauge Wire

MPT
8-2 Ratchet Tool

Ergonomic Extended Handle, Release Lever

Four Rotating Dies

4290
26-8 Ratchet Tool

Three Quick Change Dies, Release Lever

Also Crimps 20-10 Gauge Insulated Terminals

Also Crimps 20-10 Gauge "B" Crimp (Wing Type) Term.

RATCHET TRIO
8-2 Ratchet Tool

13.75" Long High Leverage TPR Handle

Four Die Nests: 8 ga., 6 ga., 4 ga., 2 ga.

NON INS 8-2
8.2 Crimper Tool

18.5" Long

Also Crimps 8-2 Gauge Insulated Terminals

6220
8-2 Crimper Tool

24.75" Long, Four Rotating Dies

Also Crimps 8-2 Gauge Non-Insulated Flag Terminals

Also Crimps 8-2 Gauge Copper Lugs

CT-38
8-1/0 Crimper Tool

16" Long Handles, Compound Action

Also Crimps 8-1/0 Gauge Battery Terminals

Also Crimps 8-1/0 Gauge Copper Lugs

ET10-1JR
6-250MCM Crimper Tool

Rotating Dies, Compound Action

25" Long Handle to Reduce Fatigue

Also Crimps 6 Gauge-250MCM Battery Terminals

Also Crimps 6 Gauge-250MCM Copper Lugs

ET8-6/0
6-250MCM Crimper Tool

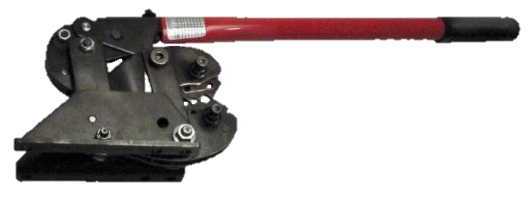

Bench Mount, Screw Dial Size Adjustment

Also Crimps 6 Gauge-250MCM Battery Terminals

Also Crimps 6 Gauge-250MCM Copper Lugs

ET8-6/0 BENCH
8-250MCM Manually Operated

22" Long, Dieless Indent, Wire Calibration Screw

Also Crimps 8 Gauge-250MCM Copper Lugs

Also Crimps 8-4/0 Gauge Non-Insulated Flag Terminals

MT-25
6-4/0 Hammer Indent Tool

Indent Crimp Economy Tool

Also Crimps 6-4/0 Gauge Battery Terminals

Also Crimps 6-4/0 Gauge Copper Lugs

ETH8-4/0
Crimping Tools for Heat Shrink Terminals
Wire Size (AWG) Style Feature Part Number

26-14



22-10



16-8

Ratchet Tool



Ratchet Tool



Ratchet Tool

UL listed with Heavy Duty Shrink Terminals, Release Lever

Also Crimps 26-14 Gauge Insulated Terminals


UL listed with Heavy Duty Shrink Terminals, Release Lever

Also Crimps 22-10 Gauge Insulated Terminals


UL listed with Heavy Duty Shrink Terminals, Release Lever

Also Crimps 16-8 Gauge Insulated Terminals

500 RATCHET UL-S



500 RATCHET UL



500 RATCHET UL-L

22-8 Ratchet Tool

Release Lever

Also Crimps 22-8 Gauge Insulated Terminals

SHRINK 22-8
Crimping Tools for "B" Crimp-Wings Terminals
Wire Size (AWG) Style Feature Part Number
22-10 Ratchet Tool

Crimping Wings are Folded Over to Capture Wire

Open Barrel Type, Release Lever

480 RATCHET
20-10 Ratchet Tool

Three Quick Change Dies, Release Lever

Also Crimps 26-10 Gauge Non-Insulated Terminals

Also Crimps 22-10 Gauge Insulated Terminals

RATCHET TRIO
30-18 Ratchet Tool

Crimps the Open Barrel Used in D-SubS, Molex,

and AMP Mate-N-Lok Connectors.

Release Lever

OB RATCHET30-18
24-14 Crimper Tool

5 Different Open Barrel Wing Crimps

Economy Tool, Compound Action

T-11
Crimping Tools for Insulated Flag Terminals
Wire Size (AWG) Style Feature Part Number
22-14 Ratchet Tool Pressure Adjustment Wheel, Release Lever FLAG-INS 2214
16-10 Ratchet Tool Pressure Adjustment Wheel, Release Lever FLAG-INS 1410
Crimping Tools for Non-Insulated Flag Terminals
Wire Size (AWG) Style Feature Part Number
22-14 Ratchet Pressure Adjustment Wheel, Release Lever FLAG-NON 2214
22-10 Crimper Tool

Also Crimps Standard 26-6 Ga. Insulated Terminals

Also Crimps 26-6 Non-Insulated Terminals

TH-450
8-2 Crimper Tool

24.75" Long, Four Rotating Dies

Also Crimps 8-2 Gauge Copper Lugs

Also Crimps 8-2 Gauge Non-Insulated Flag Terminals

CT-38
8-4/0 Hand Pressure

22" Long, Dieless Indent, Wire Calibration Screw

Also Crimps 8 Gauge-250MCM Non-Insulated Terminals

Also Crimps 8 Gauge-250MCM Copper Lugs

MT-25
